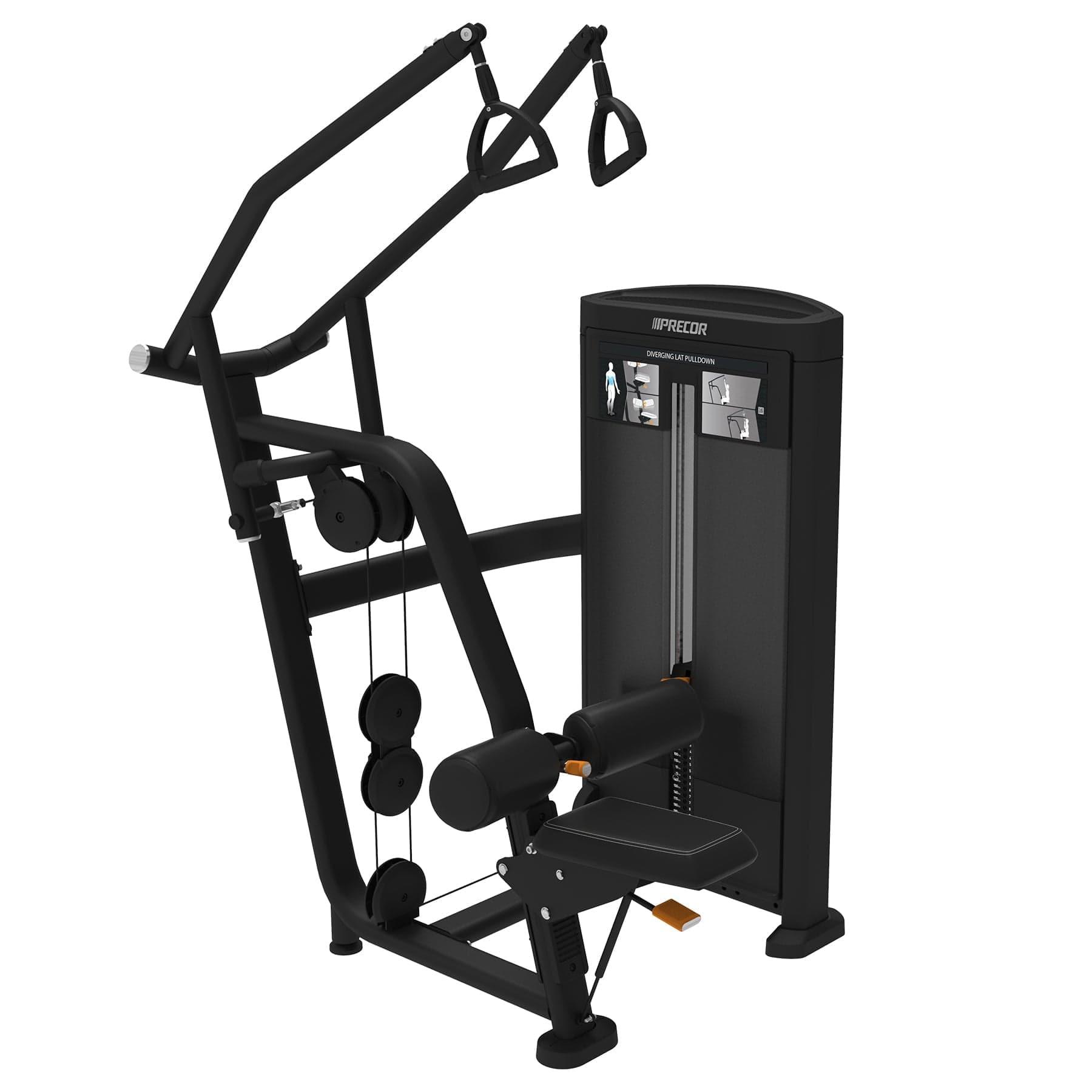

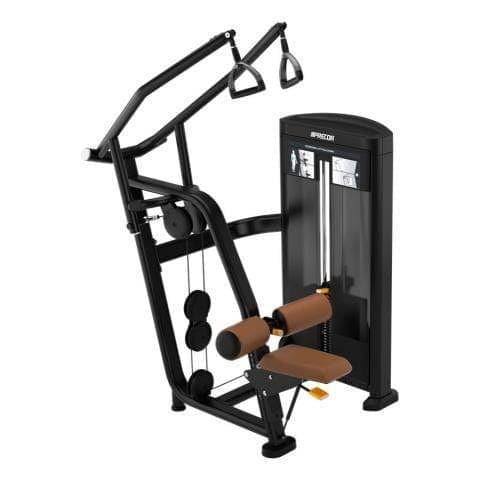

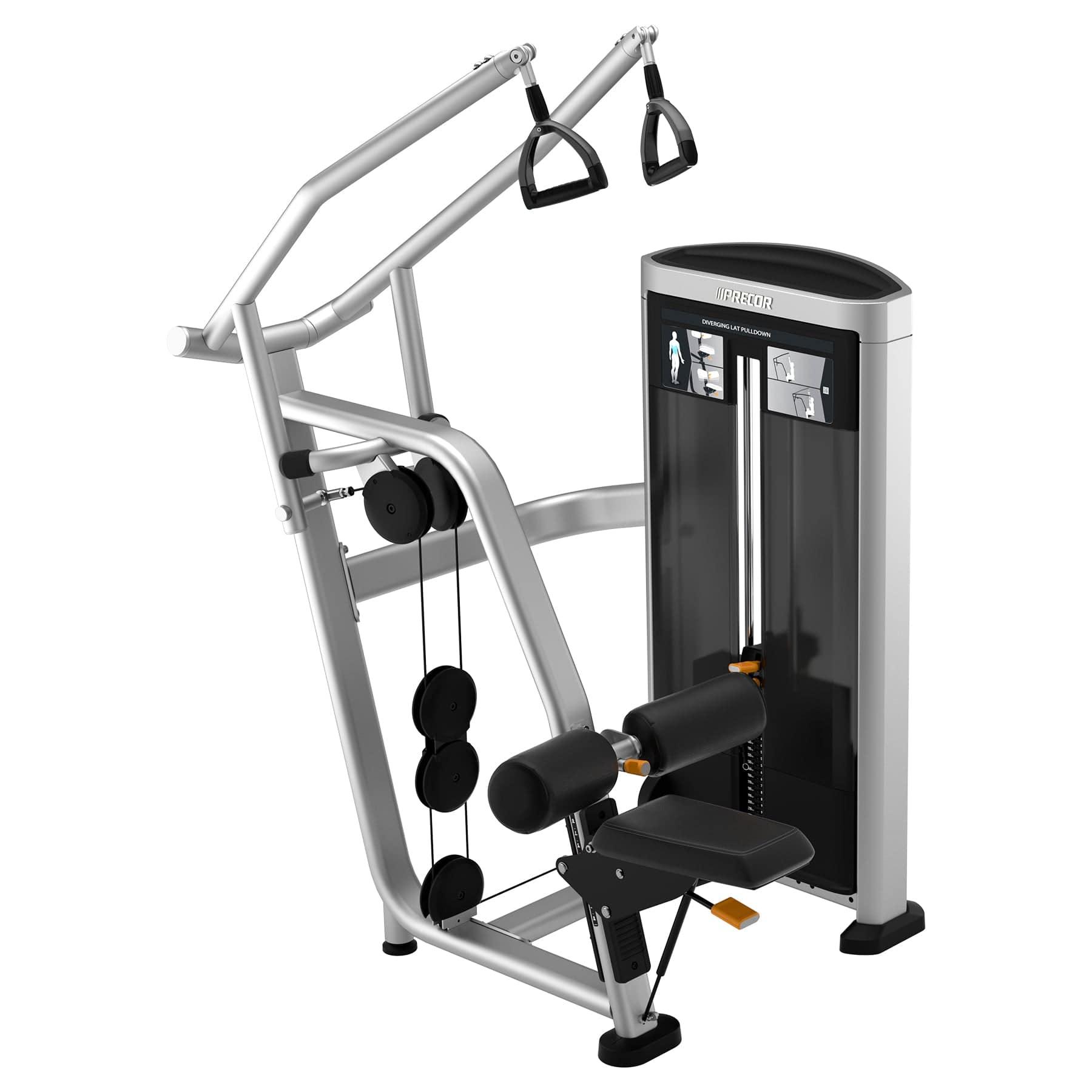

The Resolute Strength Diverging Lat Pulldown features independent movement arms and ergonomically-shaped, rotating handles that allow the exerciser's arm to travel in a natural movement path. Exercisers can train one arm or both simultaneously or alternately.
[SPECIFICATION]
| Weight Stack | Units have fully shrouded weight stacks in full compliance with ASTM and EN standards. Each selector plate is entirely precision-machined on all surfaces. Top plate has replaceable precision self-lubricating bushings. The plates feature a black painted protective finish. Guide rods are precision centerless ground, polished, with corrosion-resistant plating for smooth operation and rust retardation. The weight stack is elevated to facilitate user pin selection from seated position. |
| Upholstery | Premium-quality 3D urethane molded-foam padding for maximum comfort. Fabric meets or exceeds California fire regulations (Bulletin 117, section E). Automotive-grade, two-textured fabric features double top stitching on all seams. |
| Adjustable Seat | Yes, gas-assisted ratcheting seat adjustment |
| Adjustments | Gas -assist ratcheting seat adjustment requires only a lift to release the lever. Easy pull-pin allows for adjustment of the large oversized thigh stabilizer pads which are angled for easier entry and exit. Adjustment points are highlighted with a contrasting color for easy identification and use. |
| Instructional Placard | Easy to understand exercise placards feature large set-up and start and finish position diagrams that are visibly easy to identify. QR codes provide quick and easy video instruction from your smart phone. |
| Bearings and Pivot Points | Oversized, linear, re-circulating ball bearings run on case-hardened shafts and are sealed and self aligning. Pivot points and joints feature motor-grade sealed ball bearings, or sleeve bearings, utilizing either oil-impregnated bronze bushings or pre-lubricated nylon bushings. Bolts are grade 5 or above in all applications. |
| Water Bottle and Accessories Holder | The non-slip drink-and-accessory tray is integrated and features large open, even surface area, easily accessible and easy to keep clean. |
| Pulleys and Cables | Glass-fiber-reinforced nylon pulleys provide strength and durability, while precision ball bearings allow effortless rotation. Cables use a 7x19 stranded wire configuration for added strength and flexibility and are coated with black pressure-extruded nylon for long lasting protection and a smooth feel. 3/16-inch (.48 cm) wire is coated to 1/4 inch (.64 cm) with a breaking strength of 4200 lb (1905 kg) and 1/8 inch (.32 cm) wire is coated to 3/16 inch (.48 cm) with a breaking strength of 2000 lb (907 kg). |
| Frame and Finish | The frame is 11 gauge (.120 in) 2x4" electroweld steel racetrack tubing. Movement arms are made of electroweld steel round tubing. The five-stage material prep/wash process is followed by an electrostatically applied, heat-cured powder coat. |
| Bolt Down Capability | Yes |

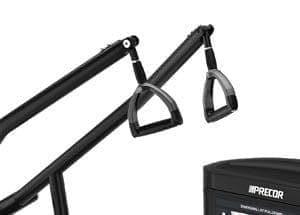

| General Features | Diverging axis allows for more natural motion and greater range of motion. Independent, user defined proprietary handles allow for user’s natural movement , supination and pronation through the pulling range of motion. Ergonomically fit handles are slip resistant over molded handles. |
| Standard Shroud Color | Black |
| Incremental Add-on Weight | 5 lb (2.3 kg) |
| Weight Stack | 240 lb / 109 kg |
| Workout Area (L x W) | 56 L x 50 W / 140 L x 127 W |
| Standard Frame Colors | Black Pearl; Gloss Metallic Silver |
| Stocked Upholstery Colors | All Spice, Black, Grey |
| Additional Upholstery Options (Additional lead time applies) | American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, Slate |
| Length | 57 inches / 146 cm |
| Width | 50 inches / 127 cm |
| Height | 81 inches / 206 cm |
| Equipment Weight | 585 lb / 266 kg |
| Length | 58 inches / 147 cm |
| Width | 49 inches / 125 cm |
| Height | 85 inches / 216 cm |
| Shipping Weight | 668 lb / 304 kg |
| EN957 | Yes |
| ASTM | Yes |
